Unlocking Scalability: Refactoring Terraform Infrastructure with Reusable Modules

On the justifai project, our infrastructure as code (IaC) setup, while functional, presented growing challenges. Initially designed as a flat Terraform configuration, it became increasingly complex to manage, understand, and scale as the project evolved. This monolithic approach obscured resource dependencies, hindered reusability, and increased the cognitive load on developers.

The Monolithic Challenge

Our original Terraform configuration was a single, large file or a few loosely organized files defining all AWS resources directly. This made it difficult to pinpoint specific services, manage changes, and apply best practices. For instance, creating a new microservice would often involve duplicating large blocks of existing resource definitions, leading to inconsistencies and maintenance nightmares.

Problems included:

• Lack of Clarity: Difficult to understand the overall architecture and how different services interconnected.
• Reduced Reusability: Identical or similar resource patterns (e.g., a standard Lambda setup with IAM roles) had to be repeatedly defined.
• Increased Error Surface: Changes in one area could inadvertently affect unrelated services due to tightly coupled resource definitions.
• Slower Development: Onboarding new team members or making significant infrastructure changes required a deep dive into a sprawling configuration.

The Modular Solution

To address these issues, we undertook a significant refactor to modularize our Terraform infrastructure. The goal was to break down the monolithic configuration into distinct, reusable modules, each responsible for a specific domain of our AWS resources. Crucially, this refactor was purely structural, introducing no functional changes to the existing infrastructure; all resource names and behaviors were preserved.

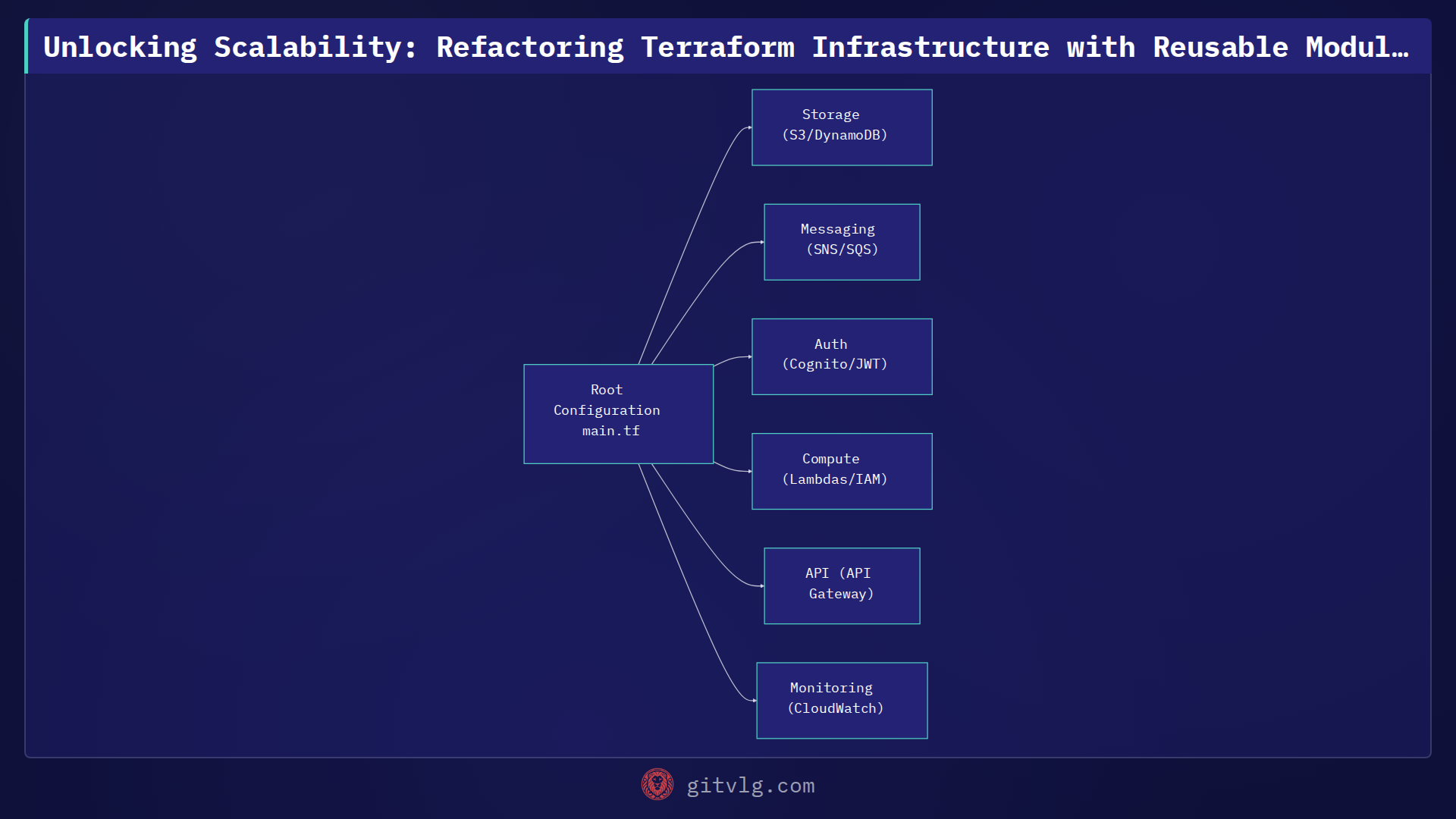

We organized our infrastructure into six core modules:

1. storage: For S3 buckets and DynamoDB tables.
2. messaging: Handling SNS topics, SQS queues, and Dead-Letter Queues (DLQs).
3. auth: Managing Cognito User Pools and client configurations for our SPA.
4. compute: Defining AWS Lambdas, their IAM roles, and event triggers.
5. api: Setting up API Gateway endpoints and integrating JWT authorizers.
6. monitoring: Configuring CloudWatch alarms and dashboards.

This modular approach transformed our root Terraform configuration (main.tf) into a lean orchestration layer, responsible only for wiring these specialized modules together. Here's a simplified example of how our root configuration now looks:

# main.tf in the root directory

module "app_storage" {
  source = "./modules/storage"
  bucket_name = "my-app-data"
  table_name = "app-users"
}

module "app_messaging" {
  source = "./modules/messaging"
  queue_prefix = "app-events"
  enable_dlq = true
}

module "user_auth" {
  source = "./modules/auth"
  pool_name = "app-user-pool"
  client_name = "spa-client"
}

module "api_gateway" {
  source = "./modules/api"
  api_name = "main-api"
  auth_provider_arn = module.user_auth.cognito_user_pool_arn
  lambda_integrations = {
    "get_items" = module.item_compute.get_items_lambda_arn
  }
}

module "item_compute" {
  source = "./modules/compute"
  function_name = "process-items"
  memory_size = 256
}

module "app_monitoring" {
  source = "./modules/monitoring"
  target_email = "[email protected]"
  lambda_alarms = [module.item_compute.get_items_lambda_name]
}

Each module encapsulates its resources and exposes only necessary outputs, enforcing a clear separation of concerns. This dramatically improved readability and maintainability.

The Takeaway

Modularizing your Infrastructure as Code is not just a best practice; it's a strategic investment in the long-term health and scalability of your project. By breaking down your infrastructure into small, focused, and reusable modules, you gain clearer responsibilities, easier testing, faster development cycles, and a significantly more robust system. Even if it's a structural refactor without immediate functional changes, the benefits in maintainability and developer experience are immense. Start by identifying logical groupings of resources and extract them into dedicated modules, making your root configuration an orchestration layer rather than a monolithic definition.
