Bypassing PowerShell Execution Policies for SonarQube in GitHub Actions

Introduction

The sivbg-project prioritizes code quality, making static analysis tools like SonarQube essential for our CI/CD pipeline. SonarQube provides invaluable insights into code health and maintainability. Our recent efforts to integrate SonarQube analysis within GitHub Actions workflows, however, revealed a common environmental challenge on Windows runners.

The Problem

During the setup of our SonarQube analysis job in GitHub Actions, we encountered persistent failures on Windows-based runners. The core issue stemmed from the PowerShell execution policy, a security feature designed to prevent untrusted scripts from running. This policy, often set to a restricted level by default, effectively blocked the execution of scripts invoked by the SonarQube scanner or other build tools. The workflow would terminate prematurely with errors indicating script execution was unauthorized or blocked, preventing any code quality metrics from being generated.

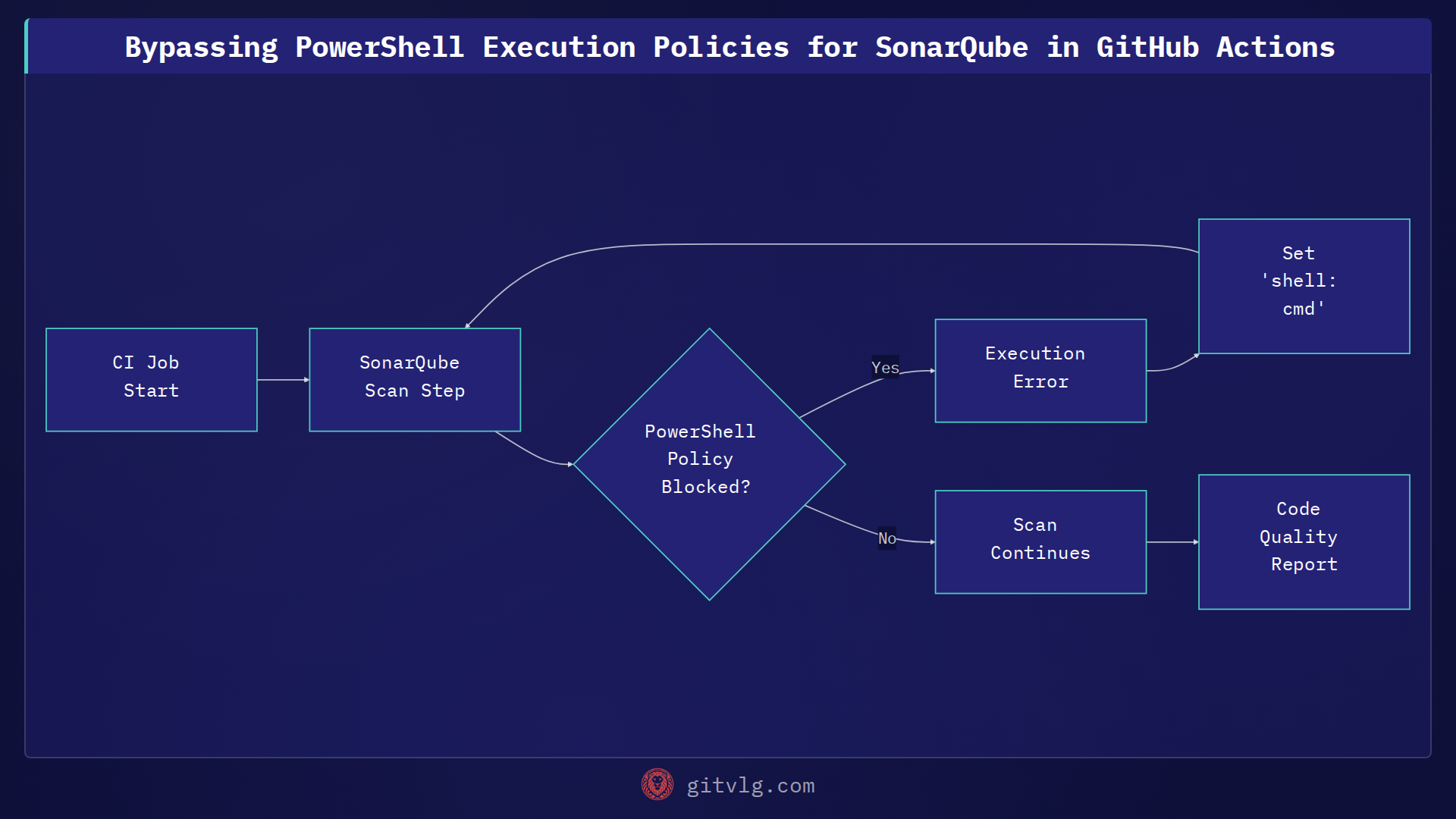

The Solution: Forcing Command Execution

To overcome the PowerShell execution policy without compromising the overall security of the GitHub Actions runner, we implemented a targeted workaround: explicitly forcing the command execution for the SonarQube step. Instead of allowing the runner's default shell (which is PowerShell on Windows) to handle the command, we directed GitHub Actions to use cmd.exe directly.

This approach effectively bypasses the PowerShell execution policy for that specific command block, ensuring the SonarQube scanner can execute its tasks without interruption. Here’s an illustrative example of how such a step might be configured in a GitHub Actions workflow:

- name: Run SonarQube Analysis
  shell: cmd # Explicitly use Command Prompt
  run: |
    # Example SonarQube scanner commands
    # Replace with your project's specific scanner invocation
    dotnet sonarscanner begin /k:"MyProjectKey" /d:sonar.host.url="https://sonarcloud.io" /d:sonar.token="${{ secrets.SONAR_TOKEN }}"
    dotnet build --no-incremental
    dotnet sonarscanner end /d:sonar.token="${{ secrets.SONAR_TOKEN }}"

By specifying shell: cmd, we instruct GitHub Actions to use cmd.exe on Windows runners, circumventing the PowerShell execution policy issue for these critical analysis steps.

Results After Six Months

Implementing this fix immediately unblocked our SonarQube integration, allowing the sivbg-project to benefit from continuous code quality analysis. While this particular fix is about enablement rather than long-term metrics, its impact was profound: it enabled our team to leverage SonarQube's capabilities consistently.

This change ensures that code contributions to the sivbg-project are continuously evaluated for quality, leading to more robust and maintainable software over time.

Getting Started

1. Review CI/CD Logs: Look for specific errors related to script execution, permissions, or policy violations in your workflow logs.
2. Understand Runner Defaults: Be aware of the default shell and security policies on your chosen CI/CD runners (e.g., PowerShell execution policy on Windows).
3. Specify Shell Explicitly: If a policy is blocking execution, try explicitly defining the shell for problematic steps (e.g., shell: cmd for Windows or shell: bash for Linux).
4. Validate the Fix: Always test your CI/CD pipeline thoroughly after making changes to confirm the issue is resolved without introducing new regressions.

Key Insight

Effective CI/CD pipeline management often requires a detailed understanding of the runner's execution environment. Security mechanisms like PowerShell execution policies are vital but can occasionally impede necessary processes. Knowing how to pragmatically navigate these environmental constraints, such as by explicitly choosing a shell, is crucial for maintaining efficient and secure automated development workflows.
